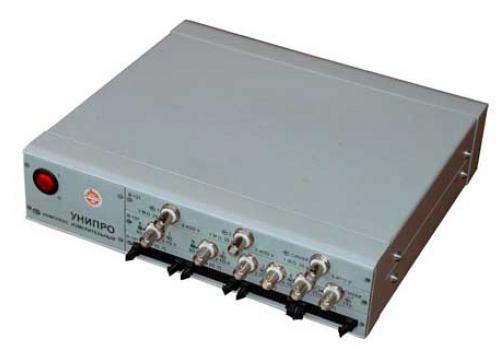

Multifunctional measurement complex “UNIPRO”

Multifunctional measurement complex “UNIPRO”

UNIPRO multifunction measuring equipment is a multipurpose measuring device of wide application. It can be used in such fields as automation of scientific research, diagnostics in physics, biology, medicine, tuning of electronic plates, TV and radio-sets, production needs.
The equipment is suitable to create automated measuring systems being the base of workplaces of researcher, tuner or metrologist. UNIPRO multifunctional measuring equipment has a flexible, changeable structure.

It can be composed of different combination of measuring units, being the part of regular set, including (besides B-101power supply box and B-111 interface unit) the following measuring units:
- logical analyzer which explores digital electronic signals in frequency range from 0 to 100 MHz by registering them in digital memory and indicating them on computer screen, digitally measures amplitude and time parameters, and mathematically analyses measuring results;
- digital oscillator which explores single and periodic electric signals in frequency range from 0 to 200 MHz by registering them in digital memory and indicating on computer screen, digitally measures time parameters and processes measuring results by appropriate program;
- digital generator which is used for generation signals of sinusoidal and triangular form in frequency range from 0,1 to 10 MHz, signals of right-angle form in frequency range from 0,1 to 50 MHz, signals of arbitrary form with frequency of discretion from 0,25 to 100 MHz, being preset analytically, graphically and programmatically (as well as of any combination of all above mentioned signals) by registering them in digital computer memory, then this data this being transformed into analogue form.
