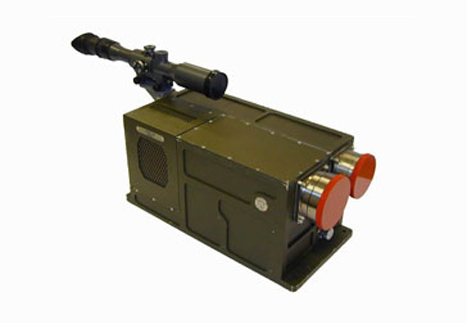

“Zenith” Laser Range Finder Module
“Zenith” Laser Range Finder Module is intended for determination of a distance to the object which is located within the field of view of the transmitting lens.
The operating principle of the item is based on estimation of the time of light signal passing being radiated by laser range finder module transmitter to the target and back.
Performance characteristics
|
Minimum distance being measured, m |
200 |
|
Maximum distance being measured*, m |
20 000 |
|
Measurement accuracy, m |
± 3 |
|
Radiation wavelength, µm |
1,064 |
|
Measurement frequency, Hz |
up to 12,5 |
|
Supply voltage, V |
24 (18 ÷ 32) |
|
Overall dimensions, mm |
435х205х200 |
|
Weight,kg |
17 |
|
Operating temperature range, оС |
-30…+55 |
* parameter should be stipulated in the course of order discussion.
Peculiarities:
Interface RS 422
Significant time of continuous operation (maximum 30 minutes)
Complete set of delivery:
“Zenith” Laser Range Finder Module
Optical viewing device 8xx 42
Cover (х2)
Connecting plug
Service cable
Operating Manual
PCB with a Software (one for 20 items)
