Cuirasse-M

Cuirasse-M

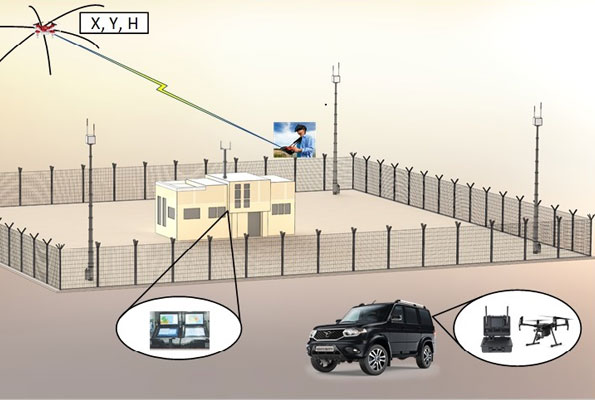

Designation
detection, positioning and recognition of UAV types;
detection and positioning of UAV control posts, photographing and video recording of their operators.

Composition
Optic-1 local receiving points – 1 to 4 items
Synchron-1 remote receiving points – 0 to 4 items
“Cuirasse-CP” automated control post
“Groza-O3” direction finder on a flying platform

Technical characteristics

Frequency range 400–6000 МHz
UAV detection range up to 5 km
Potential coordinate detection accuracy (RMSE) at a range of 1 km maximum 50 m
Potential accuracy (RMSE) of radiation source control post direction finding for Groza-O3 direction finders:
in the 400–900 MHz frequency range maximum 8°
in the 900–6000 MHz frequency range maximum 4°
Distance between the receiving points and the Cuirasse-CP control post up to  5 km
