Prevention of unsanctioned trespassing by multicopters into the territory of the protected facilities by jamming their control channels and on-board GPS and GLONASS systems’ navigation equipment.

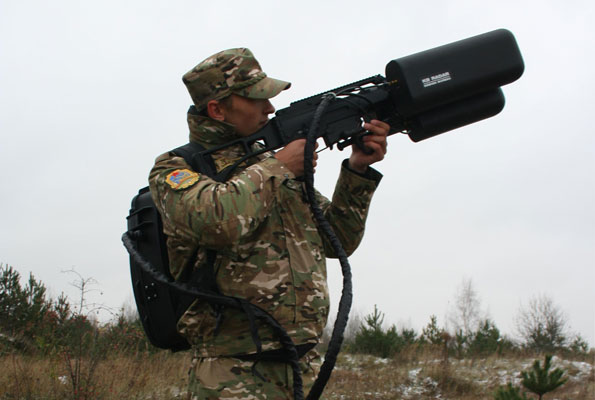

jammer shaping unit;
antenna system (three antennas) mounted onto the gun gripstock.
The jammer shaping unit and the storage battery are housed in the portable container inside the backpack.
The power-on and radiation-on controls are installed on the gun body.
The gun is equipped with a collimator sight.
|Frequency ranges of victim control channels||2.4–2.485 GHz
|Frequency ranges of victim GPS (L1) and GLONASS (L1) navigation receivers||1.574–1.576 GHz
|Multicopter navigation equipment jamming range||up to 5 km|
|Multicopter control channel jamming range||up to 2 km|
|Continuous radiation time||60 min|
|Single multicopter engagement cycle||0.5–2 min|
|Power supply||storage battery|
|Weight (gun with case)||18 kg|
